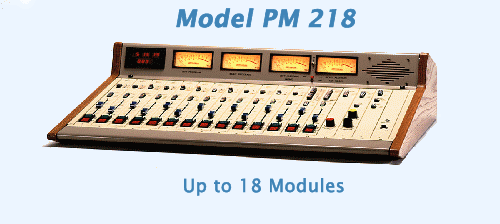

PM 218

Pacemaker 218

FEATURES SPECIFICATIONS
  Input Characteristics Output Characteristics
  • New Modern Styling and Color with Wood Endbells
  • EXCLUSIVE BI-MODULAR CONCEPT
  • All LED Illumination !
  • Start with as few modules as needed - expand later !
  • Machine control for all inputs
  • All DC Control - Replace Modules while on air witout pops or clicks
  • Electronic switching
  • No audio transformers
  • Penny and Giles linear conductive plastic pots
  • Selector switches
  • Engraved front panel
  • Pluggable miniature terminal strips
  • Up to eight patchable microphone preamplifiers
  • Easy input level selection
  • Self-resetting "Poly Fuses" protect individual circuit boards
  • Standard Autolock
  • Four Lighted Meters
  • Built In Cue Speaker

Sources:
Up to 40 stereo inputs
4 or 8 Microphones

Impedances:
Microphone, 150 ohm
High level, 20k ohm bridge or 600 ohm terminate
External monitor, 20k or 600 ohm

Levels:
Microphone, -65 to -50 dBm
High level, -10 to +10 dBm
External monitor, -10 to +10 dBm

SNR:
Programs/Monitor, better than -90 dB at +18 dBm out
Headphone/Cue, better than -80 dB at 2 watts

Power Source:
Universal 85-264 VAC 47- 440Hz


Mounting & Dimensions:
Table top with bottom or back cable entry
Height: 8.8" (22.35 cm)
Depth: 28.75" (73.1 cm)
Width: 30.1" (76.5 cm)

Outputs:
1 Stereo Program
1 Stereo Audition
1 Mix Minus
1 Mono
2 Line Monitor
2 Headphones
1 Cue

Impedances:
Programs/Monitor, 600 ohm balanced or unbalanced
Phone/Cue, 2 watt at 8 ohm

Levels:
Programs/Monitor, +8 dBm nominal +24 dBm maximum
Headphone/Cue 2 watt at 8 ohm

Frequency Response:
Programs/Monitor, +0.1 dB 20 to 20 kHz
Headphone/Cue, +0.5 dB 20 to 20 kHz

Distortion:
Programs/Monitor, less than .05% THD and IMD
Headphone/Cue, less than .1% THD and IMD
