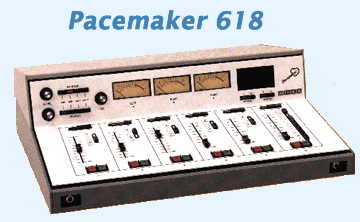

Pacemaker 618

Pacemaker 618

FEATURES SPECIFICATIONS
  Input Characteristics Output Characteristics
  • 6 Pots - 5 Dual and 1 with 8 inputs
  • Machine control for all inputs
  • Legend strip for each input
  • VCA level control
  • Electronic switching
  • No audio transformers
  • Penny and Giles linear conductive plastic pots
  • Selector switches
  • Engraved front panel
  • Pluggable miniature terminal strips
  • Up to eight patchable microphone preamplifiers
  • Easy input level selection
  • Optional Autolock
Sources:
18 stereo inputs
4 or 8 Microphones

Impedances:
Microphone, 150 ohm
High level, 20k ohm bridge or 600 ohm terminate
External monitor, 20k or 600 ohm

Levels:
Microphone, -65 to -50 dBm
High level, -10 to +10 dBm
External monitor, -10 to +10 dBm

SNR:
Programs/Monitor, better than -90 dB at +18 dBm out
Headphone/Cue, better than -80 dB at 2 watts

Power Source:
117 or 230 volt ac, 50 - 60 Hz

Mounting & Dimensions:
Table top with bottom or back cable entry
Height: 9.25" (23.49 cm)
Depth: 21.75" (55.25 cm)
Width: 26.62" (67.61 cm)
Outputs:
1 Stereo Program
1 Stereo Audition
1 Mix Minus
1 Mono
2 Line Monitor
2 Headphones
1 Cue

Impedances:
Programs/Monitor, 600 ohm balanced or unbalanced
Phone/Cue, 2 watt at 8 ohm

Levels:
Programs/Monitor, +8 dBm nominal +24 dBm maximum
Headphone/Cue 2 watt at 8 ohm

Frequency Response:
Programs/Monitor, +0.1 dB 20 to 20 kHz
Headphone/Cue, +0.5 dB 20 to 20 kHz

Distortion:
Programs/Monitor, less than .05% THD and IMD
Headphone/Cue, less than .1% THD and IMD
